Improving Surface Finish: Die Casting vs. CNC Machining Methods
Surface finish plays a crucial role in modern manufacturing, influencing not only the aesthetic appeal of a component but also its performance, durability, and functionality. When producing precision components, two of the most widely used manufacturing processes are die casting and CNC machining. Both methods offer unique advantages in achieving specific surface finishes, depending on the end-use requirements. This article will explore how die casting and CNC machining compare in terms of surface finish, their advantages and limitations, industries that benefit most, and factors to consider when selecting the right method.
Importance of Surface Finish in Manufacturing
Surface finish refers to the texture, roughness, and quality of the exterior of a component. A smooth surface finish is essential in industries such as aerospace, automotive, medical devices, and electronics where precision, reliability, and performance are critical. A poor surface finish can cause excessive wear, reduce fatigue strength, increase friction, and compromise product performance.
Some key benefits of a superior surface finish include:
- Reduced friction between moving parts.
- Improved fatigue strength and wear resistance.
- Enhanced sealing capability for gaskets and seals.
- Better adhesion for coatings, paints, or plating.
- Aesthetic enhancement and market competitiveness.
As such, choosing the right manufacturing process is critical to achieving optimal results.
Die Casting and Surface Finish
Die casting is a manufacturing process in which molten metal is injected into a steel mold cavity under high pressure. Once cooled and solidified, the part is ejected from the mold, producing a near-net-shape component with tight tolerances and good surface characteristics.
Surface Finish Quality in Die Casting
Factors that affect die casting surface finish include:
Mold Design and Condition: A highly polished mold cavity ensures smoother surfaces.
Alloy Selection: Aluminum, zinc, and magnesium alloys produce different finish characteristics.
Injection Pressure and Cooling Rates: Optimized process parameters improve finish consistency.
Surface Treatments: Post-process treatments such as shot blasting, polishing, anodizing, or painting further improve appearance and durability.
Advantages of Die Casting for Surface Finish
- Produces smooth, repeatable finishes directly from the mold.
- Reduces or eliminates the need for extensive secondary machining.
- Suitable for decorative parts requiring painting or plating.
- Ideal for mass production with consistent results.
Limitations
- Minor surface defects such as porosity, flow marks, or flash may occur.
- Achieving mirror-like finishes often requires secondary operations.
- Tool wear over time can reduce surface quality.
CNC Machining and Surface Finish
CNC (Computer Numerical Control) machining is a subtractive manufacturing method that uses cutting tools to remove material from a workpiece to achieve precise dimensions and surface finishes. Unlike die casting, CNC machining does not rely on molds but instead directly machines parts from solid blocks or billets.
Surface Finish Quality in CNC Machining
CNC machining can achieve extremely fine finishes, with roughness values as low as **8 microinches Ra** or even better with advanced polishing. The surface finish depends on factors such as cutting tool sharpness, feed rates, spindle speed, material type, and machine precision.
Factors influencing CNC surface finish include:
Tooling: Sharp, high-quality tools improve surface quality.
Cutting Parameters: Optimal feed rate, cutting speed, and depth of cut reduce tool marks.
Material Properties: Softer metals may smear while harder metals can resist machining.
Coolant and Lubrication: Proper cooling prevents tool wear and improves finish.
Advantages of CNC Machining for Surface Finish
- Capable of ultra-precise, mirror-like finishes.
- Consistent surface quality across different materials.
- Ability to fine-tune finishes through multiple passes.
- No mold-related defects like porosity or flash.
Limitations
- Slower and more expensive for high-volume production compared to die casting.
- Surface finish consistency depends heavily on tool condition.
- May require post-polishing for extremely high-end finishes.
Die Casting vs. CNC Machining: Surface Finish Comparison
When comparing die casting and CNC machining for surface finish, the choice depends on production volume, budget, and quality requirements.
| Criteria | Die Casting | CNC Machining |
| Typical Surface Finish (Ra) | 32 – 64 microinches | 8 – 32 microinches |
| Consistency | High for mass production | High but tool-dependent |
| Defects | Possible porosity, flash, flow marks | Tool marks, burrs |
| Post-Processing | Often required for premium finishes | Minimal, sometimes polishing |
| Production Volume | Cost-effective for large quantities | Better suited for low/medium runs |
| Flexibility | Limited to mold design | Highly flexible, complex geometries |
From this comparison, it is clear that:
Die casting is more cost-efficient for high-volume production with reasonably good finishes. It works best for parts where functional and cosmetic quality is sufficient with minimal post-processing.
CNC machining excels when ultra-smooth finishes, precision, and flexibility are required. It is often the preferred choice for prototypes, small batches, and high-value components.
Applications Requiring Superior Surface Finishes
Automotive Industry: Engine housings, decorative trims, and transmission components often use die casting, while CNC machining is chosen for critical components like pistons and performance parts.
Aerospace: Precision components requiring fatigue resistance rely on CNC machining for superior finishes.
Medical Devices: Surgical tools and implants demand flawless surface finishes achievable through CNC machining.
Electronics: Housings, connectors, and heat sinks benefit from both die casting and CNC machining depending on production needs.
Consumer Goods: Die casting is widely used for durable, attractive parts in appliances and electronics.
Choosing the Right Method
When deciding between die casting and CNC machining for surface finish improvement, manufacturers should consider:
1. Design Complexity – CNC machining offers greater flexibility.
2. Volume Requirements – Die casting is more economical at scale.
3. Surface Finish Needs – CNC machining achieves finer finishes.
4. Budget – Die casting reduces per-part cost at high volume, while CNC machining has higher unit costs.
5. Material – Certain alloys may favor one method over the other.
Ultimately, both processes can achieve excellent surface finishes, but the choice depends on balancing performance, cost, and production scale.
Conclusion
Surface finish is a critical aspect of part performance and appearance. Die casting and CNC machining each provide unique strengths in achieving the desired results. Die casting offers cost-effective production with decent finishes, making it ideal for high-volume applications. CNC machining delivers unmatched precision and superior finishes, perfect for industries requiring high accuracy and small batches. Manufacturers must evaluate their needs to select the right method that balances cost, quality, and performance.

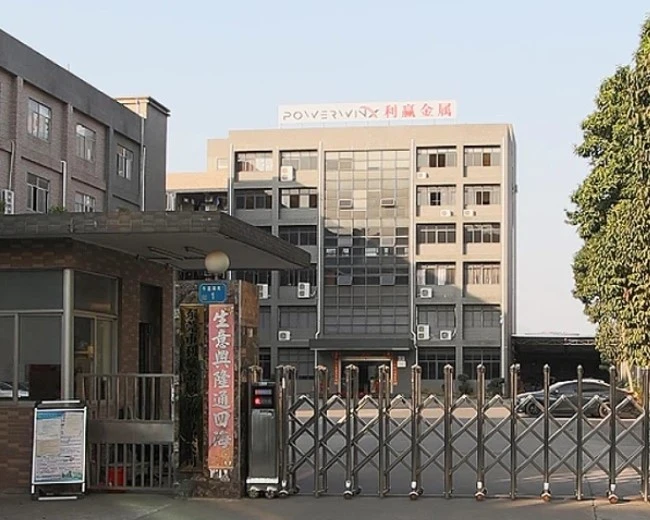

PowerWinx is a leading manufacturer in China specializing in precision die casting, CNC machining, and advanced heat sink solutions. PowerWinx provides high-quality products tailored for industries such as automotive, electronics, aerospace, and medical devices. Our commitment to innovation, quality control, and customer satisfaction ensures reliable solutions for global clients seeking advanced manufacturing excellence.
