Copper Folded Fin Heat Sink
Introduction
Copper folded fin heat sinks are manufactured using a progressive stamping process that folds a continuous sheet of metal into a wavy shape to maximize the heat dissipation surface area. The folded fins are connected to the heat sink base by brazing, solder or epoxy resin, ensuring that heat can be quickly transferred from the heat source to the heat sink and dissipated through the increased surface area.
 |
 |

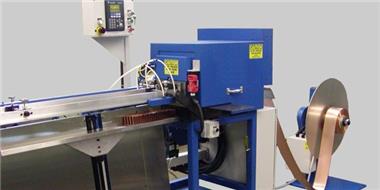

| Copper rolled material | Folded fin heat sink process |
Features
Folded fin structure of copper
The unique feature of copper folded fin heat sinks is the folded structure of their fins. These fins are not simply flat metal sheets, but are folded into wavy or other complex shapes through a progressive stamping process to maximize the surface area of the heat sink. This folding process increases the surface area of the fins, allowing copper folded fin heat sinks to provide higher heat dissipation efficiency in a smaller volume. By optimizing the folding angle and fin shape, the air flow path of the heat sink is effectively improved, further enhancing its natural convection capacity.
Optimized combination of copper and aluminum materials
Copper folded fin heat sinks usually combine copper and aluminum. Copper is the core component of the heat sink and is responsible for the rapid conduction of heat, while aluminum is used as the fin part. This design strategy makes full use of the high thermal conductivity of copper and the lightweight properties of aluminum. Copper has a much higher thermal conductivity than aluminum and can quickly conduct heat from the heat source to the fins, while the lightweight properties of aluminum help reduce the weight of the overall heat sink.
Precision connection process
The connection process used by copper folded fin heat sinks, such as brazing, epoxy resin or welding technology, greatly improves the overall performance of the heat sink. The folded fins are tightly combined with the substrate through efficient connection methods to ensure that heat can be transferred to the fins through the shortest path. At the same time, the precise control of the connection process reduces the thermal resistance, ensuring that the heat sink still maintains good heat dissipation effect under high-load working conditions. In addition, the precision connection process can also enhance the structural stability of the heat sink and extend its service life, which is particularly suitable for environments that require long-term and efficient heat dissipation.
High stability and environmental adaptability
The stability and corrosion resistance of copper in high temperature environments make copper folded fin heat sinks highly adaptable, especially suitable for heat dissipation applications in harsh environments. Copper's oxidation resistance and high temperature resistance ensure that the heat sink will not experience material fatigue or performance degradation when running at high temperatures for a long time. This stability makes copper folded fin heat sinks not only suitable for conventional electronic equipment, but also widely used in extreme temperature changes and harsh environments to meet more demanding heat dissipation needs.
China copper folded fin heat sink manufacturer
Specification
|
Item name |
China copper folded fin heat sink manufacturer |
|
Material |
Copper |
|
Surface finish |
Customized |
|
MOQ |
1000 PCS |
|
L/T |
15-20 days for tooling and 7-10 days for sample |
|
Size |
150*150*10 mm |
|
Packing |
Safety packing |
|
Application |
Projector |
Delivery,Shipping
FAQ
Q: What information do you need to quote my part?
A: A fully dimensioned print, drawing, sketch (preferably in a PDF format) and/or CAD file • The raw material(s) specified • Any necessary secondary operations, including heat treating, plating or finishing specifications • Any customer specifications that may apply; such as 1st Article Inspection, PPAP requirements, material and outside process certificates required • The quantities you want us to quote • Any other background information that would be helpful, including target pricing or required lead-times.
Q: Is there a typical delivery lead time for prototype parts? For production parts?
A: There is no such thing as a "typical lead time" for either prototype or production parts. We will work hard to meet your needs on every part we run. We invest aggressively in new machine tools, shop expansion, and adding quality people to our team to assure our lead times remain very competitive. We are always looking for ways to reduce delivery times.
Q: Do you offer other services like finishing, assembly, packaging and logistical support?
A: Just tell us what your needs are and that will drive how we work for you. Don't hesitate to ask us for customized services. We do this routinely in order to get our customers the exact part, in the right quantity, to their line when they need it. It's all about saving you time and money. Cass can provide you additional finishing capabilities including, anodizing, plating, heat-treating, assembly, warehousing and custom packaging..
Q: Are you a manufacturer or trading company ?
A: We are manufacturer, located on Dongguan, Guangdong, China .
